Turn All Tilting System

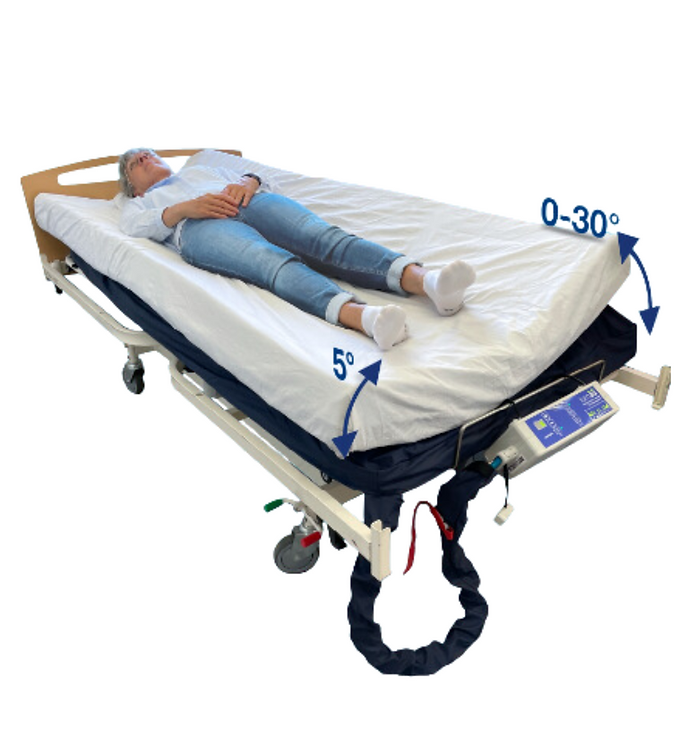

Turn All is an automatic tilting system that helps prevent and treat pressure ulcers by positioning a person in a 30-degree side position alternating between the right and left side.

The system can be used in any healthcare bed with a removable mattress, where it is placed under the mattress.

The tilt system is intuitive and simple to install and operate.

• The mattress is removed from the bed
• The pump is mounted on the end of the bed and the cable is plugged into the pump and socket
• The tilt system is placed on the slats of the bed and secured with the three straps
• The air hose is put into the pump and it is ensured that the CPR function is closed
• The mattress is placed on top of the tilting system
• The system is now installed and ready to use
• The system is switched on at the on/off button on the pump
• With the +/- buttons you select the number of hours the chip system should run
• The interval for turns is set to 30, 60 or 90 minutes on the corresponding buttons
• When the on/off button is lit and the button for the selected time invert is lit, the system is running
• If you need to quickly flatten the bed, pull the red CPR strip, which will deflate the tilt system.

Size (cm): 85 x 200

Max user weight: 225 kg
